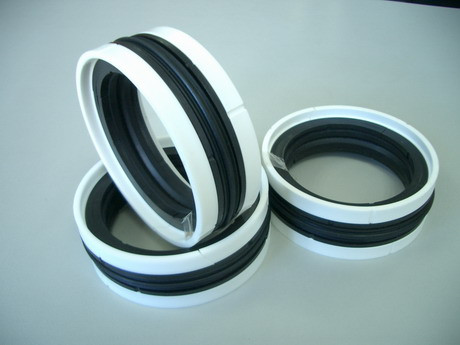

1．TPM組合油封標準材料
密封體：丁腈橡膠NBR或氟橡膠FKM
擋 圈：聚酯彈性體
耐磨環：聚甲醛POM或尼龍PA
2．應用范圍

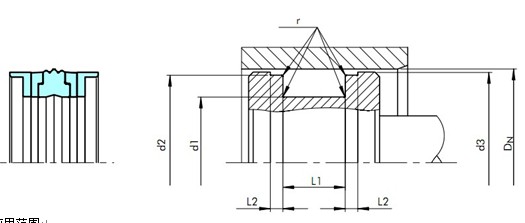

DDAS組合密封經常在作往復運動的液壓缸和活塞中用作密封元件，如：型推土機、起重機、叉車、液壓閘門及農業機械等。安裝在包括ISO6547標準溝槽的閉合溝槽中。設計選用時可參考Trelleborg公司DAS系列、Parker公司ZW系列、AS公司KGD系列標準。
3．特性及優點
1．良好的防泄漏性能；
2．彈性密封圈不會扭曲和翻轉；
3．活塞總長度較短；
4．活塞的生產成本低；
5．密封圈和耐磨環價廉；
6．開切口的擋圈和導向環安裝方便；
7．對間隙的抗擠出能力極強；
8．可安裝在封閉式溝槽中，能降低加工成本。
編號 | D*d*L | H | 規格 | TPM 098059 | 25*15*12.5 | 20.5 | TPM 25*15*12.5 | TPM 098059 | 25*15*16.4 | 29.1 | TPM 25*15*16.4 | TPM 098066 | 25*17*10 | 18 | TPM 25*17*10 | TPM 118066 | 30*17*15.4 | 28.1 | TPM 30*17*15.4 | TPM 125086 | 32*22*12.5 | 20.5 | TPM 32*22*12.5 | TPM 125086 | 32*22*16.4 | 29.1 | TPM 32*22*16.4 | TPM 125094 | 32*24*10 | 18 | TPM 32*24*10 | TPM 137098 | 35*25*16.4 | 29.1 | TPM 35*25*16.4 | TPM 157118 | 40*30*16.4 | 29.1 | TPM 40*30*16.4 | TPM 157118 | 40*30*12.5 | 20.5 | TPM 40*30*12.5 | TPM 157118 | 40*30*12.5 | 20.5 | TPM 40*30*12.5 | TPM 157125 | 40*32*10 | 18 | TPM 40*32*10 | TPM 157094 | 40*24*18.4 | 31.1 | TPM 40*24*18.4 | TPM 177114 | 45*29*18.4 | 31.1 | TPM 45*29*18.4 | TPM 177137 | 45*35*16.4 | 29.1 | TPM 45*35*16.4 | TPM 196133 | 50*34*18.4 | 31.1 | TPM 50*34*18.4 | TPM 196137 | 50*35*20 | 30 | TPM 50*35*20 | TPM 196157 | 50*40*12.5 | 20.5 | TPM 50*40*12.5 | TPM 216153 | 55*39*18.4 | 31.1 | TPM 55*39*18.4 | TPM 216177 | 55*45*12.5 | 20.5 | TPM 55*45*12.5 | TPM 236173 | 60*44*18.4 | 31.1 | TPM 60*44*18.4 | TPM 236173/1 | 60*44*19.4 | 32.1 | TPM 60*44*19.4 | TPM 248185 | 63*47*18.4 | 31.1 | TPM 63*47*18.4 | TPM 248185/1 | 63*47*19.4 | 32.1 | TPM 63*47*19.4 | TPM 248188 | 63*48*20 | 30 | TPM 63*48*20 | TPM 248208 | 63*53*12.5 | 20.5 | TPM 63*53*12.5 | TPM 255196 | 65*50*18.4 | 31.1 | TPM 65*50*18.4 | TPM 275196 | 70*50*22.4 | 35.1 | TPM 70*50*22.4 | TPM 275216 | 70*55*20 | 30 | TPM 70*55*20 | TPM 295216 | 75*55*22.4 | 35.1 | TPM 75*55*22.4 | TPM 314236 | 80*60*22.4 | 35.1 | TPM 80*60*22.4 | TPM 314236 | 80*60*25 | 37.7 | TPM 80*60*25 | TPM 314255 | 80*65*20 | 30 | TPM 80*65*20 | TPM 334255 | 85*65*22.4 | 35.1 | TPM 85*65*22.4 | TPM 334295 | 85*75*20 | 28 | TPM 85*75*20 | TPM 228255 | 86*65*22.4 | 35.1 | TPM 86*65*22.4 | TPM 354275 | 90*70*22.4 | 35.1 | TPM 90*70*22.4 | TPM 354275/1 | 90*70*21 | 33.7 | TPM 90*70*21 | TPM 354295 | 90*75*20 | 30 | TPM 90*75*20 | TPM 374295 | 95*75*22.4 | 35.1 | TPM 95*75*22.4 | TPM 393295 | 100*75*22.4 | 35.1 | TPM 100*75*22.4 | TPM 393314 | 100*80*25 | 37.7 | TPM 100*80*25 | TPM 393334 | 100*85*20 | 30 | TPM 100*85*20 | TPM 393338 | 100*86*20 | 30 | TPM 100*86*20 | TPM 413314 | 105*80*22.4 | 35.1 | TPM 105*80*22.4 | TPM 417314 | 106*80*22.4 | 35.1 | TPM 106*80*22.4 | TPM 433334 | 110*85*22.4 | 35.1 | TPM 110*85*22.4 | TPM 433334/1 | 110*85*25.4 | 38.1 | TPM 110*85*25.4 | TPM 433354 | 110*90*25.3 | 38.1 | TPM 110*90*25.3 | TPM 433374 | 110*95*20 | 30 | TPM 110*95*20 | TPM 452354 | 115*90*22.4 | 35.1 | TPM 115*90*22.4 | TPM 472374 | 120*95*22.4 | 35.1 | TPM 120*95*22.4 | TPM 480374 | 122*95*22.4 | 35.1 | TPM 122*95*22.4 | TPM 492393 | 125*100*25.4 | 38.1 | TPM 125*100*25.4 | TPM 492393 | 125*100*32 | 52 | TPM 125*100*32 | TPM 492413 | 125*105*25.4 | 38.1 | TPM 125*105*25.4 | TPM 511413 | 130*105*25.4 | 44.46 | TPM 130*105*25.4 | TPM 492413 | 125*105*25 | 37.7 | TPM 125*105*25 | TPM 511413 | 130*105*25.3 | 38 | TPM 130*105*25.3 | TPM 531433 | 135*110*25.4 | 44.44 | TPM 135*110*25.4 | TPM 551452 | 140*115*25.4 | 44.44 | TPM 140*115*25.4 | TPM 551452/1 | 140*115*25.4 | 38.1 | TPM 140*115*25.4 | TPM 551472 | 140*120*25 | 37.7 | TPM 140*120*25 | TPM 570472 | 145*120*25.4 | 44.44 | TPM 145*120*25.4 | TPM 578480 | 147*122*25.4 | 44.44 | TPM 147*122*25.4 | TPM 582484 | 148*123*25.4 | 44.44 | TPM 148*123*25.4 | TPM 590492 | 150*125*25.4 | 44.44 | TPM 150*125*25.4 | TPM 590511 | 150*130*25.4 | 38.1 | TPM 150*130*25.4 | TPM 610511 | 155*130*25.4 | 44.44 | TPM 155*130*25.4 | TPM 629531 | 160*135*25.4 | 44.44 | TPM 160*135*25.4 | TPM 629511/2 | 160*130*32 | 52 | TPM 160*130*32 | TPM 629551 | 160*140*25 | 37.7 | TPM 160*140*25 | TPM 629511 | 160*130*25.4 | 44.44 | TPM 160*130*25.4 | TPM 629511/1 | 160*130*25.4 | 38.1 | TPM 160*130*25.4 | TPM 649551 | 165*140*25.4 | 44.44 | TPM 165*140*25.4 | TPM 669551 | 170*140*25.4 | 50.8 | TPM 170*140*25.4 | TPM 669570 | 170*145*25.4 | 50.8 | TPM 170*145*25.4 | TPM 688590 | 175*150*25.4 | 50.8 | TPM 175*150*25.4 | TPM 708610 | 180*155*25.4 | 50.8 | TPM 180*155*25.4 | TPM 708590 | 180*150*35.4 | 48.1 | TPM 180*150*35.4 | TPM 708590 | 180*150*36 | 61 | TPM 180*150*36 | TPM 728629 | 185*160*25.4 | 50.8 | TPM 185*160*25.4 | TPM 748649 | 190*165*25.4 | 50.8 | TPM 190*165*25.4 | TPM 787699 | 195*170*25.4 | 50.8 | TPM 195*170*25.4 | TPM 787669 | 200*170*35.4 | 48.1 | TPM 200*170*35.4 | TPM 787669/1 | 200*170*36 | 61 | TPM 200*170*36 | TPM 787688 | 200*175*25.4 | 50.8 | TPM 200*175*25.4 | TPM 826728 | 210*185*25.4 | 50.8 | TPM 210*185*25.4 | TPM 866748 | 220*190*35.4 | 48.1 | TPM 220*190*35.4 | TPM 866767 | 220*195*25.4 | 50.8 | TPM 220*195*25.4 | TPM 886787 | 225*200*25.4 | 50.8 | TPM 225*200*25.4 | TPM 905807 | 230*205*25.4 | 50.8 | TPM 230*205*25.4 | TPM 944846 | 240*215*25.4 | 50.8 | TPM 240*215*25.4 | TPM 984886 | 250*225*25.4 | 50.8 | TPM 250*225*25.4 | TPM 984866 | 250*220*35.4 | 48.1 | TPM 250*220*35.4 | TPM 984899/1 | 250*220*36 | 61 | TPM 250*220*36 | TPM 1000882 | 254*224*35.4 | 60.8 | TPM 254*224*35.4 | TPM 1024925 | 260*235*35.1 | 60.5 | TPM 260*235*35.1 | TPM 1102984 | 280*250*35.4 | 54.44 | TPM 280*250*35.4 | TPM 12591141 | 320*290*35.4 | 54.44 | TPM 320*290*35.4 | TPM 12591141/1 | 320*290*36 | 61 | TPM 320*290*36 |
|
|
|
| TPM/P 雙向活塞密封 |
|
|
|
|
|
|
| 編號 | D*d*L | H |
| TPM 1500-1125 | 38.1*28.57*11.1 | 18.72 | TPM 38.1*28.57*11.1 | TPM 1750-1125 | 44.45*28.57*19.05 | 31.75 | TPM 44.45*28.57*19.05 | TPM 2000-1375 | 50.8*34.92*19.05 | 31.75 | TPM 50.8*34.92*19.05 | TPM 2000-1625 | 50.8*41.27*11.1 | 18.72 | TPM 50.8*41.27*11.1 | TPM 2125-1500 | 53.97*38.1*19.05 | 31.75 | TPM 53.97*38.1*19.05 | TPM 2375-1750 | 60.33*44.45*19.05 | 31.75 | TPM 60.33*44.45*19.05 | TPM 2500-1875 | 63.05*47.62*19.05 | 31.75 | TPM 63.05*47.62*19.05 | TPM 2500-2000 | 63.05*50.8*14.9 | 27.6 | TPM 63.05*50.8*14.9 | TPM 2500-2125 | 63.5*53.97*11.1 | 18.72 | TPM 63.5*53.97*11.1 | TPM 2625-2000 | 66.67*50.8*19.05 | 31.75 | TPM 66.67*50.8*19.05 | TPM 3000-2250 | 76.2*57.15*23.79 | 36.49 | TPM 76.2*57.15*23.79 | TPM 3500-2750 | 88.9*69.85*23.79 | 36.49 | TPM 88.9*69.85*23.79 | TPM 4000-3250 | 101.6*82.55*23.79 | 36.49 | TPM 101.6*82.55*23.79 | TPM 5000-4000 | 127*101.6*32.15 | 44.85 | TPM 127*101.6*32.15 | TPM 6000-5000 | 152.4*127*32.15 | 44.85 | TPM 152.4*127*32.15 | TPM 7000-6000 | 117.8*152.4*32.15 | 44.85 | TPM 117.8*152.4*32.15 |
